BT45-HON3
Bluetooth® Music & Phone Interface
for Acura & Honda
Our BT45 series seamlessly integrates your vehicle's OEM sound system with Bluetooth® enabled devices so you can make hands-free phone calls and wirelessly stream audio media. Our plug & play technology allows you to maintain functionality of factory installed options such as HFL (Hands-Free Link), navigation, CD changer, Satellite radio, RSE (rear seat entertainment) system, and AUX/USB input.
|
- Crystal clear sound quality with all speaker playback
- Noise cancellation DSP hardware & CVC (Clear Voice Capture) software
- Automatically switches from AM/FM/CD, SAT & etc., to Bluetooth® mode upon incoming calls
- One button to answer/end/reject calls from the radio or the steering wheel
- Incoming caller number display and announcement
- Enable/disable caller # announcement from the radio
- Toggle between hands-free and handset (for privacy) from the radio
|
|
- Rich & dynamic audio quality with all speaker playback
- Music info (song title, artist & album name) display
- Change tracks from the radio or the steering wheel
- Stream music, podcasts, GPS directions from apps such as iHeart Radio, Spotify, Google Maps, Waze, and YouTube.
|
|
- 3.5mm AUX port
- Connect any non-Bluetooth® device equipped with a headphone jack to play its audio through your vehicle's sound system
|
|
- Keep your device charged and ready to go
- USB port is for charging only
|
Satellite Radio Receiver Locations for Honda
1 / 3

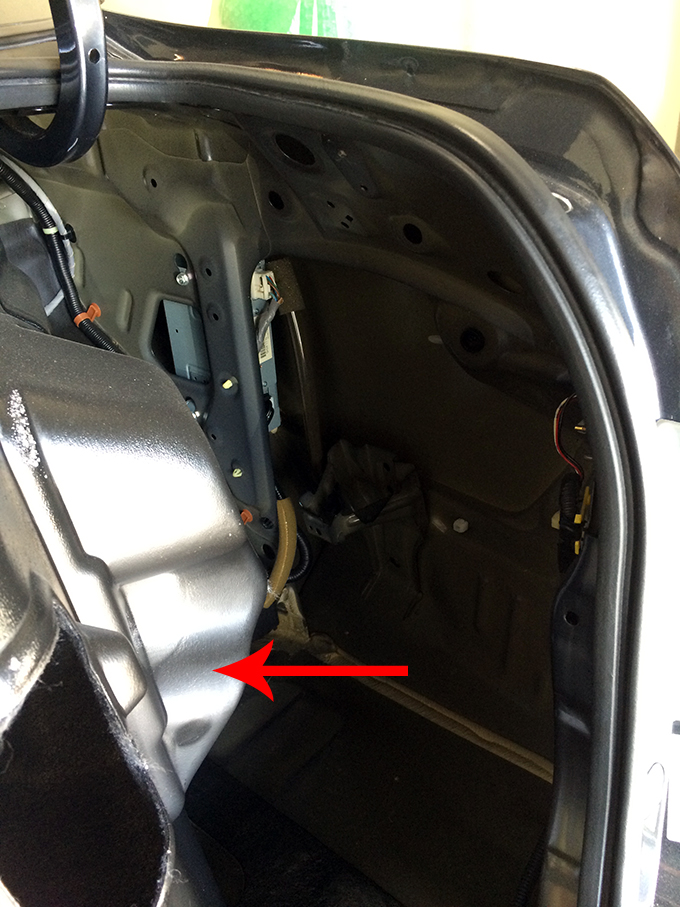

Remove the right (passenger side) quarter panel. Click arrow for next image.
2 / 3

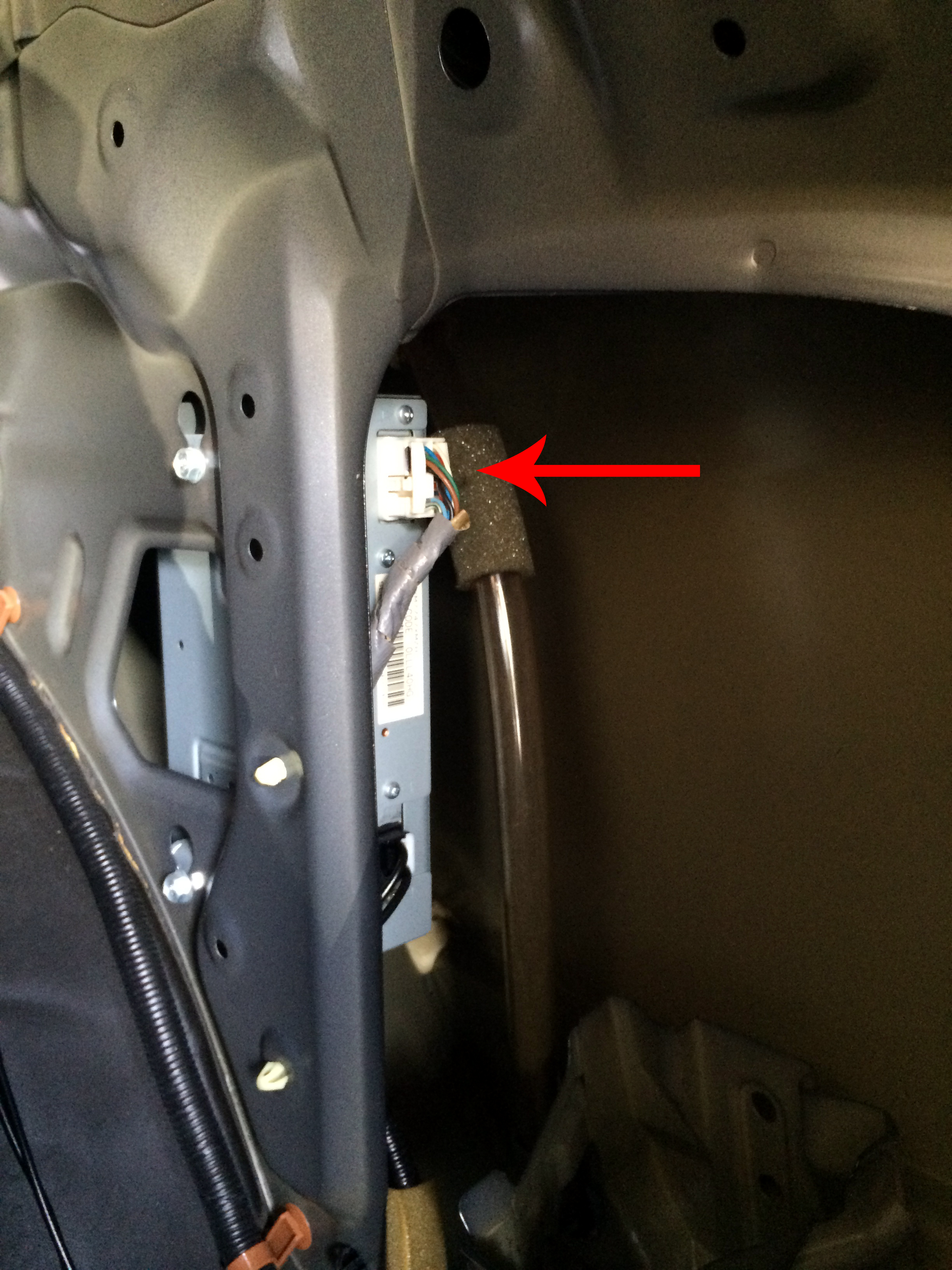

SAT/XM receiver location. Next image shows a closeup.
3 / 3
14-pin factory cable.
❮
❯
1 / 1
Get access to the rear deck through the trunk.
1 / 1

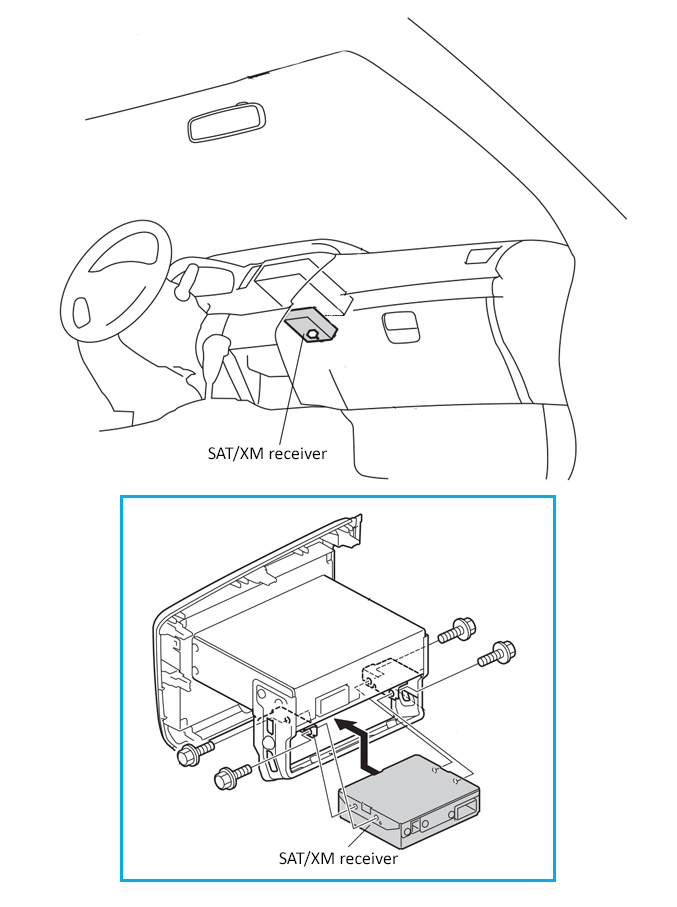

SAT/XM receiver is located under the radio.
1 / 1
SAT/XM receiver is on the left (driver side) of the trunk, behind the quarter panel
1 / 1
SAT/XM receiver is located behind the front passenger kick panel, just in front of the door.
1 / 2

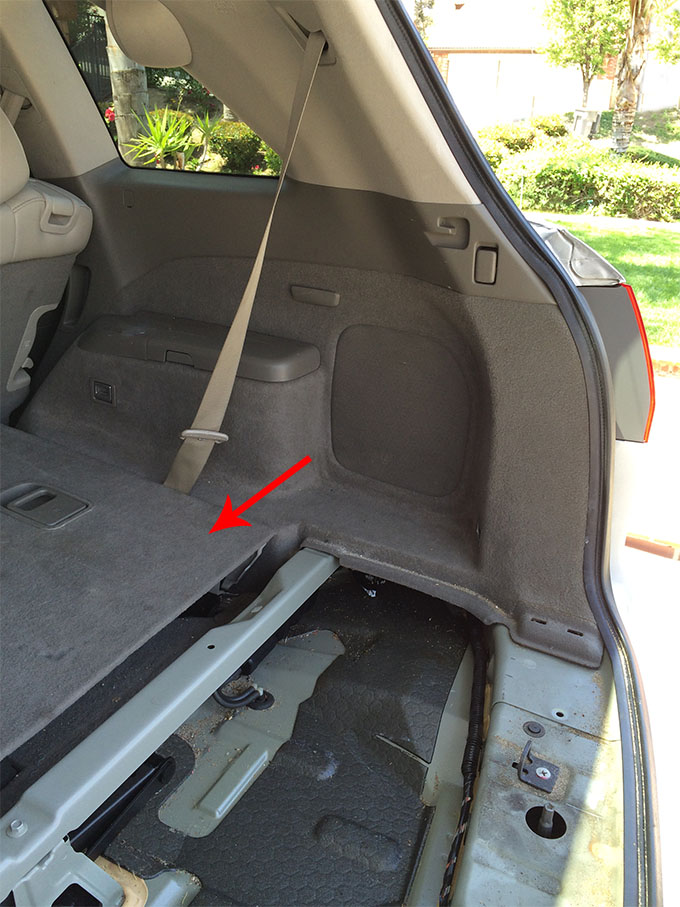

Remove the right (passenger) side quarter panel. Click arrow for next image.
2 / 2

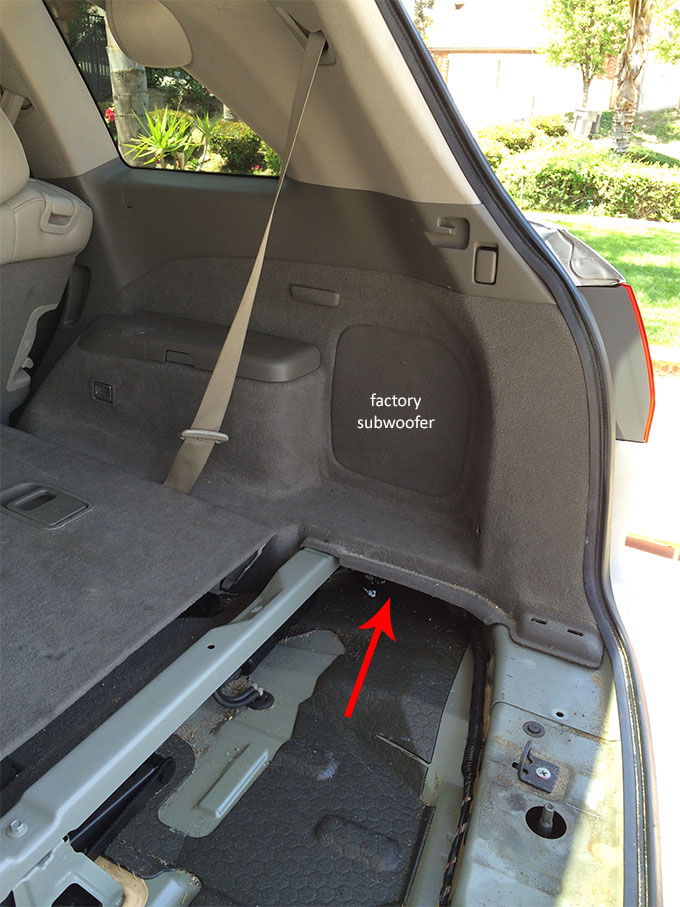

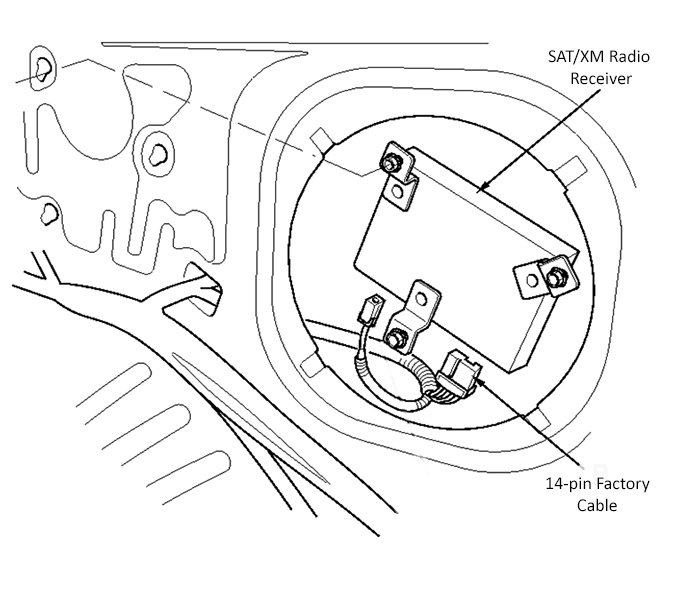

Locate the SAT/XM receiver inside the subwoofer enclosure
❮
❯
1 / 3

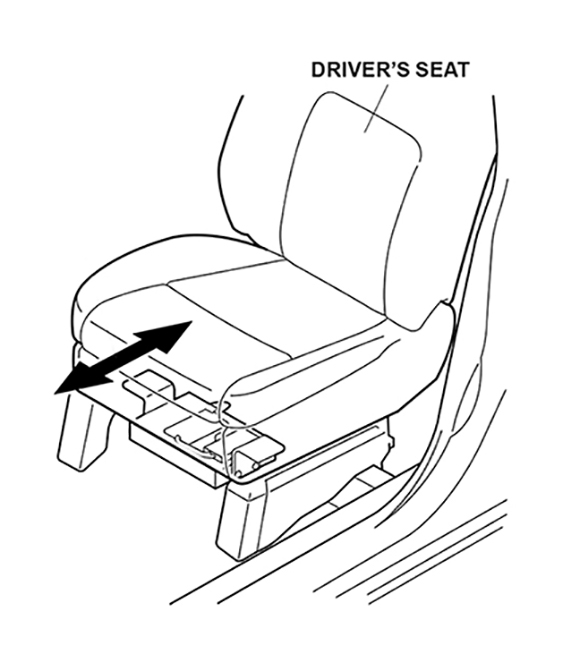

SAT/XM receiver is located under the driver's seat. Click arrow for next image.
2 / 3
After installing the BT45-HON3, check to make sure the cables are secure and will not snag when the seat is moved back and forth
3 / 3

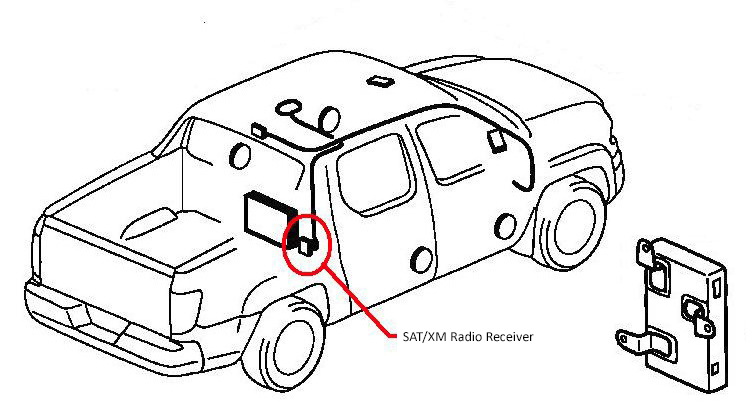

SAT/XM receiver is located behind the rear wall panel
❮
❯
Satellite Radio Receiver Locations for Acura
1 / 3
Remove the trunk's floor covering. Click arrow for next image.
2 / 3
SAT/XM receiver location. Next image shows closeup.
3 / 3
Close-up of SAT/XM receiver
❮
❯
1 / 1
SAT/XM receiver is located behind the glove box
1 / 1
1 / 3
Remove the right (passenger) side quarter panel. Click arrow for next image.
2 / 3
SAT/XM receiver location
3 / 3
14-pin factory cable
❮
❯
Tech Specs
| Bluetooth® |
- Version 2.1 + EDR with aptX
|
| Device Compatibility |
- Any Bluetooth® wireless technology enabled device
- A2DP (Advanced Audio Distribution Profile) for audio streaming
- AVRCP (Audio/Video Remote Control Profile) 1.4 or higher for streaming playback control and music info display
|
| Package Content |
- BT45-HON3 Interface Module
- Microphone: 16.5ft / 5m
- CAS-H3x Cable: 3.9ft / 1.2m
- CAS-H3t Cable: 5in / 13cm
- Product Manual
|
